36 Click Clipped Pen - 6Al-4V Titanium - Round Nose - Pilot G2

Please note there is a limit of one item per customer for this release. I want to try out a new release format. I have a batch of these ready to go now for immediate shipment but I want to make more to ensure that more people who want one get one. If this listing is sold out, please email me, and I will give you an estimate on when I can make and ship one to you. Email me with your requests for new refill and design specifications. I strongly appreciate all feedback and requests.

Made one at a time from solid 6Al-4V Titanium. The body diameter is 0.36" (9.14mm) with a rounded nose section. Minimal and clean design coupled with the Pilot G2 M 0.7mm refill. This design will fit all Pilot G2 refills.

Unique one piece body design with no removable tip piece. Solid material is drilled out with a carbide drill perfectly true over an extreme diameter to depth radio, in order to fit the refills tightly without rattle. No batching ensures all of the parts fit perfectly together. Unparalleled warranty to ensure that you are entirely happy with fit, function and finish.

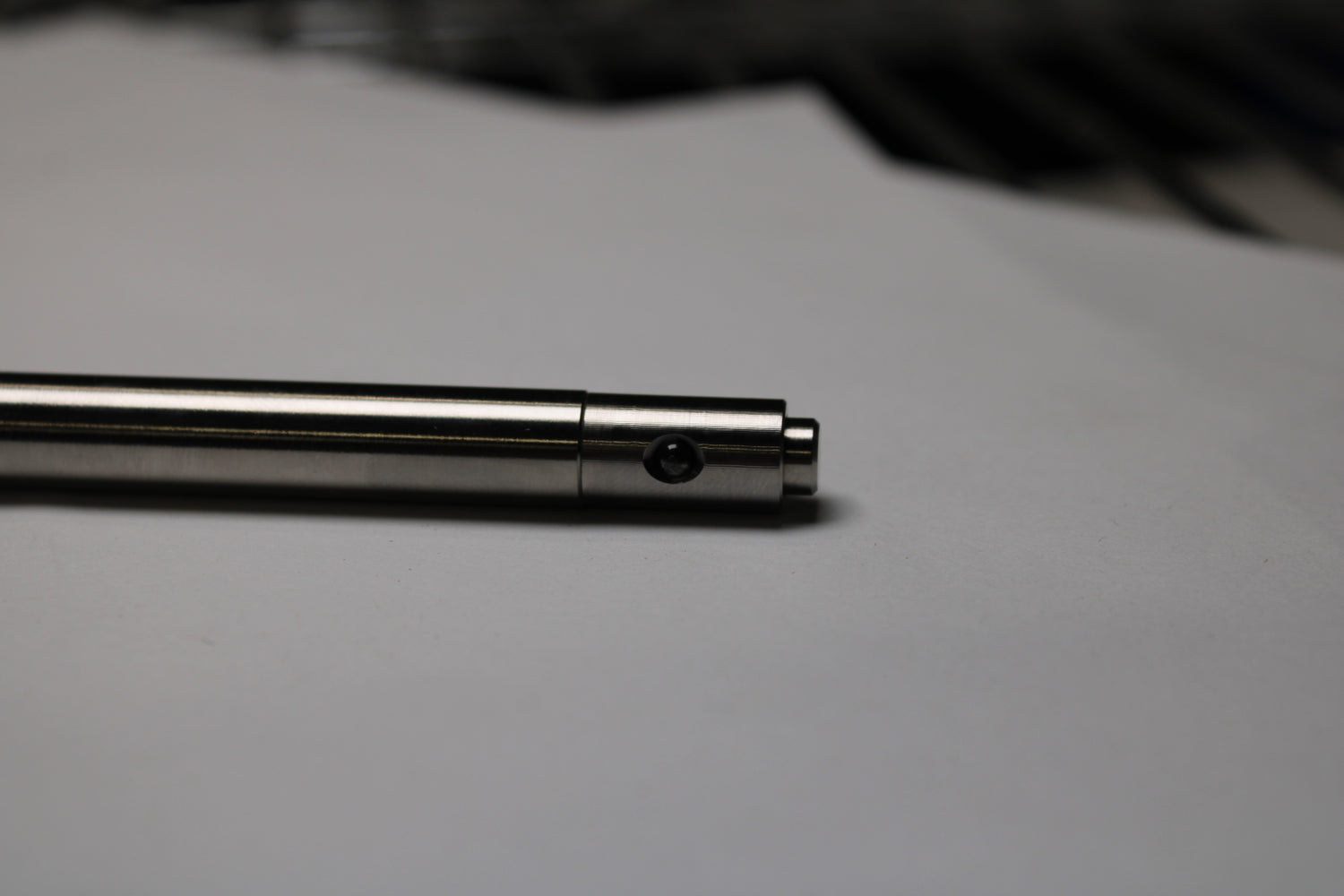

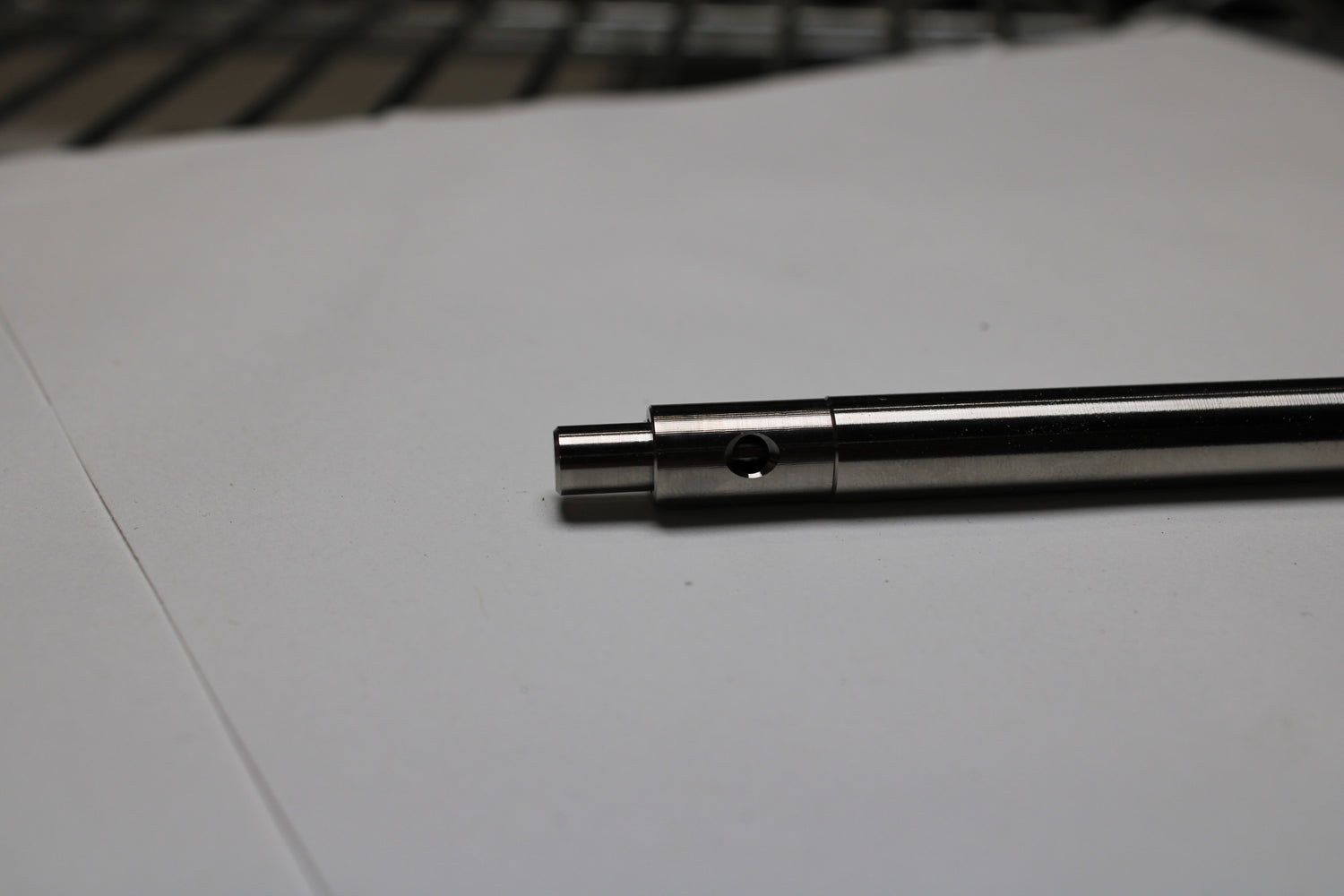

The clip takes an excessive six individual operations to create a unique one piece clip and click mechanism. Pinch the mechanism between your index finger and thumb to retract the mechanism with a satisfying snap. The click and return is very solid and super satisfying. Tolerances, fit and finish for the mechanism are very close.

Tip bore drill is aligned and offset with great care and is machined to a tolerance of just 0.001" or 25 micron to a 2.5mm diameter bore to keep the refill tip exactly in place. Threading has a high quality higbee start to make replacing the refill easy.

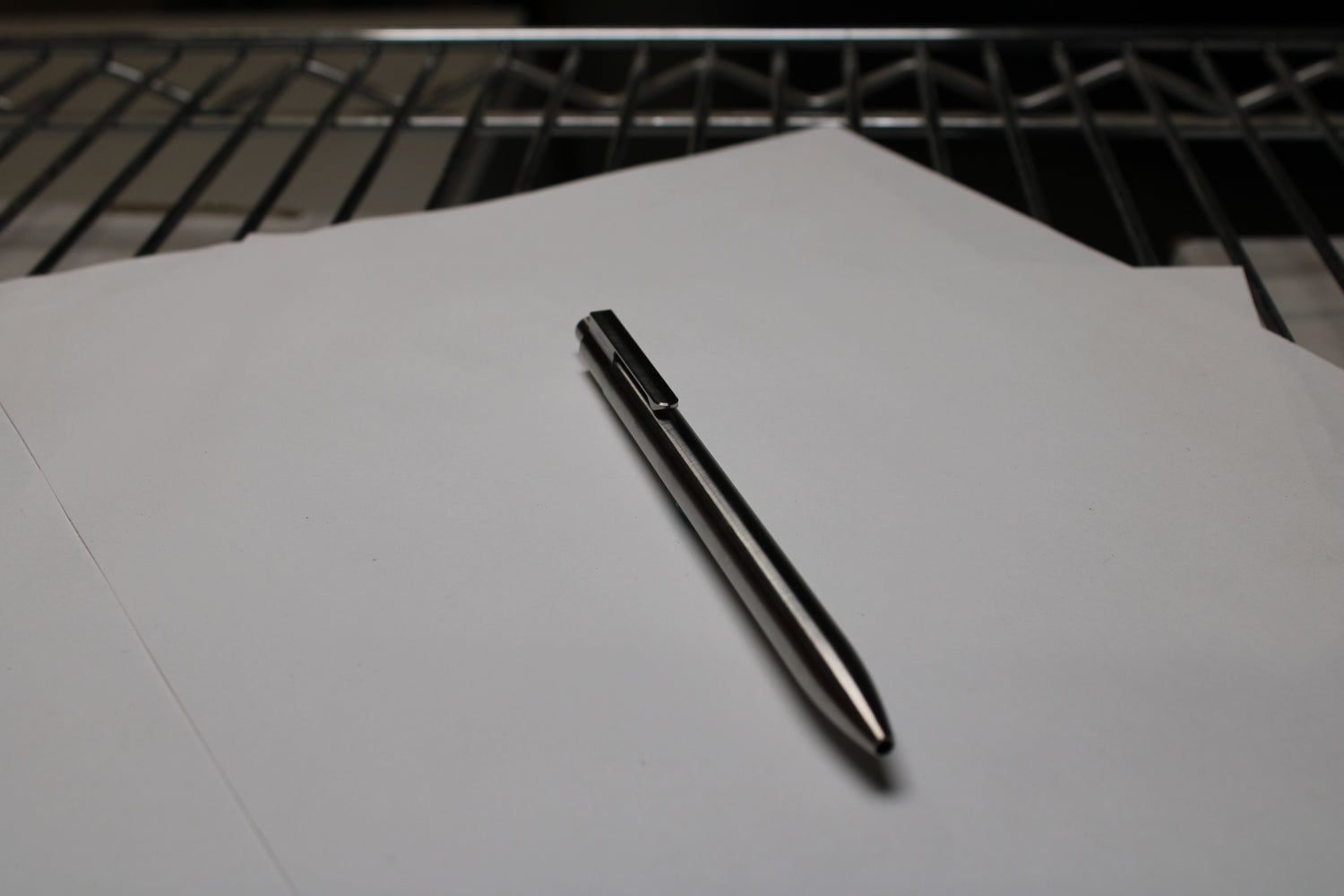

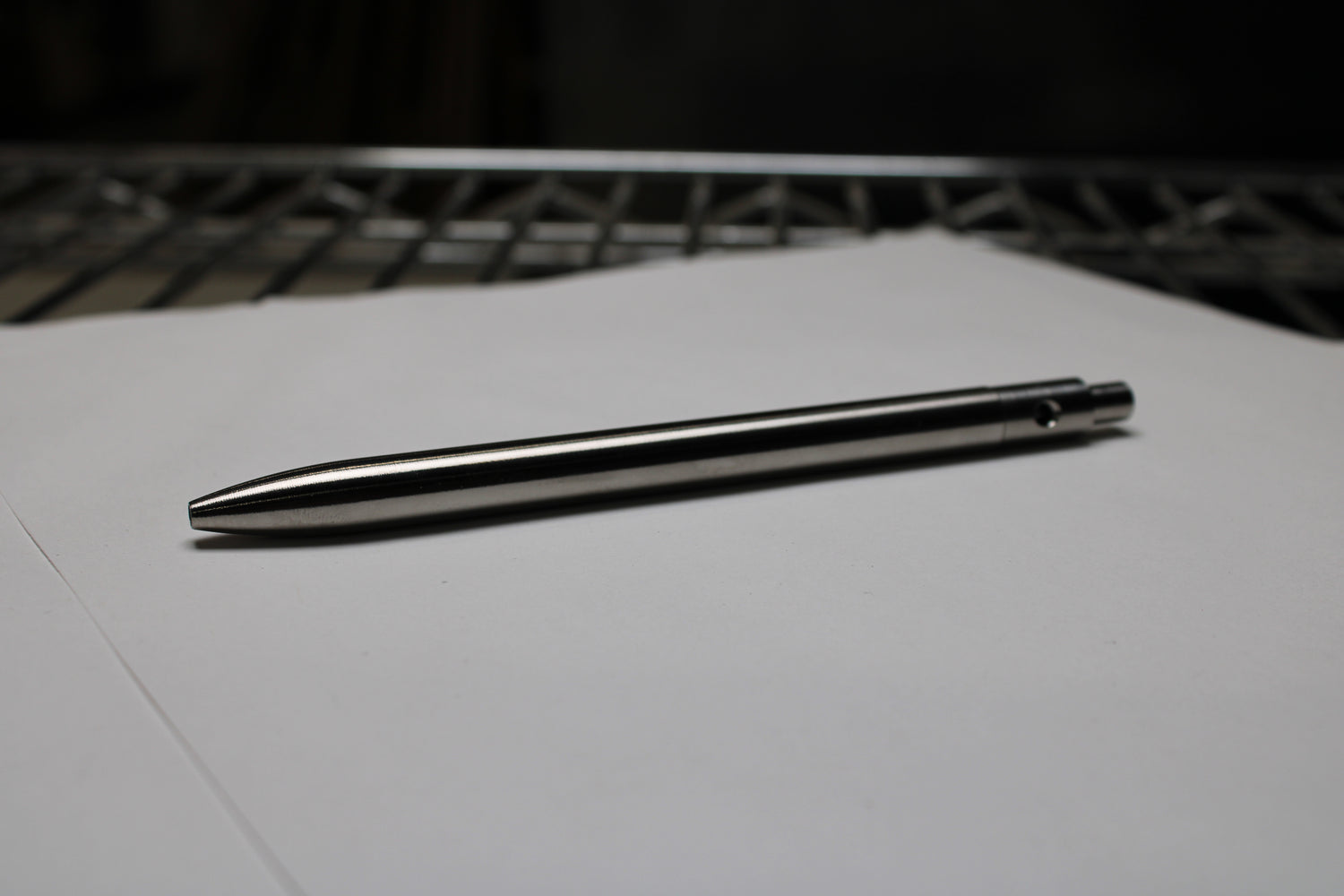

This version is 5.26" (133.60mm) long, 0.36" (9.14mm) in diameter, and 22.03g (0.78oz) and comes equipped with a Pilot G2 M 0.7mm refill. The mechanism comes fitted with stainless steel balls.
